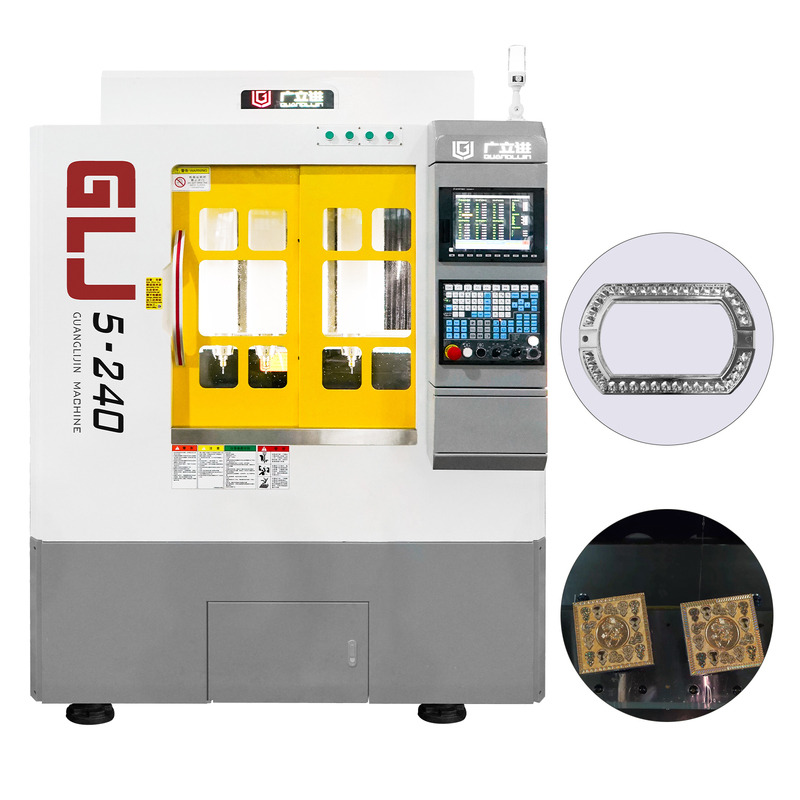

G5-240 four-station 5-axis machine

Lugar de origen	PORCELANA
Nombre de la marca	GUANGLIJIN
Certificación	CE Certificate
Número de modelo	G5-240 Máquina de 5 ejes de cuatro estaciones

Detalles del producto

Resaltar:

5-axis CNC machine with four stations

industrial G5-240 CNC machine

four-station five axis machine

Pago y términos de envío

Cantidad de orden mínima

Detalles de empaquetado

Cuadro de madera de fumigación - conforme a las normas internacionales

Tiempo de entrega

30 días

Condiciones de pago

T/T

Capacidad de la fuente

100 unidades por mes

Descripción de producto

Technical Parameters:

No.	Item	Details
1	B axis reducer	Alpha, Germany	Rated torque 88.9N.m, instaneous max. torque 312N.m, rated speed 43 rpm, max. speed 85 rpm
2	C axis reducer	Japan	Rated torque15.3N.m, instaneous max. torque 53.5N.m, rated speed 250 rpm, max. speed 500 rpm
3	Servo motor	electric	400w/750w/1kw
4	Transmission components	Rexroth, Germany	Repeatability: +/-0.005mm
5	Main spindle	servo-drive	3.7kw, max. speed 40000 rpm water cooling with flow-alarm
6	Tool magazine		Up to 10 tools
7	Tool holder		ISO 20
8	Collet chuck		ER-16
9	Lubrication		Timing automatic oiling
10	Working flatness		+/-0.015mm
11	X axis stroke		240mm
12	Y axis stroke		210mm
13	Z axis stroke		230mm
14	Body weight		3.5 tons
15	Front door		single swinging door
16	Layout (mm)	Main body	1800 width1770 depth2500 height
17	Power requirement		380v/50hz

G5-240 four-station 5-axis machine 0

Support and Services:

Technical support
Installation
Training
Maintenance
Troubleshooting
Software upgrade

Packing and Shipping:

Fumigation wooden case by sea or by air

FAQ:

Q: Are you a dealer or manufacturer?
A: We, Guanglijin, is a manufacturer of CAD/CAM CNC machine with over 20 years experience.
Q: Where are you from?
A: We are from Shenzhen China, one of the most creative city in the world.
Q: Do you provide overseas support or service?
A: Yes, we have a technican team which can travel abroad to do global service and support.
Q: Does this machine come with any certification?
A: Our machines are CE certificated.
